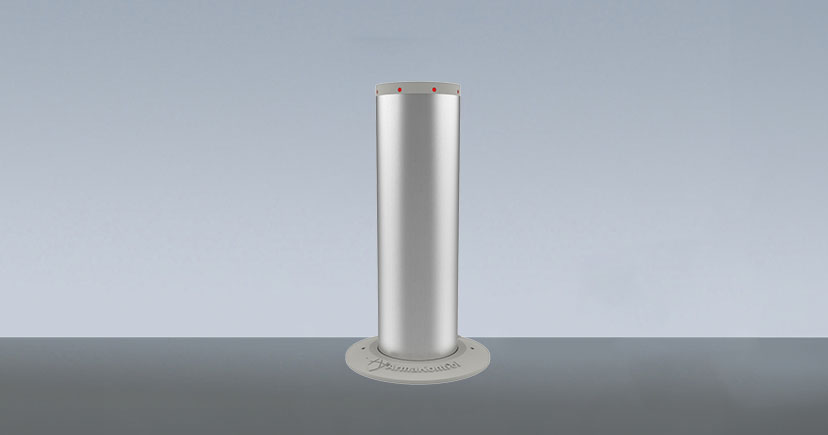

Pneumatic Rising Bollards HB-P

Pneumatic Rising Bollards HB-P

Arma A & C Series Hydraulic Bollards mechanical designs are being used on finishes of Arma Pneumatic Rising Bollards. Working mechanism of its structure is air pressure driven.

It works uninterruptedly for many years becouse of it’s structure which has being produced with stainless steel drawn steel pipes of European standards. Main differences of pneumatic bollards and hydraulic bollard is its method of operation: Pneumatic bollards uses air pressure, hydraulic bollard uses hydraulic pressure.

Pneumatic bollards has higher voice when working rather than hydraulic bollards. Also pmeumatic bollards needs frequent maintenances more than hydraulic bollards depending to usage volume.

Bollard System is compatible with any access control systems such as RFID, Card Readers, Tablets, PC, Mobile App and SCADA with it’s special Arma WOC Software and all system could be controlled from one center.

Bollard Diameter: Ø 219 - 273 mm

Bollard Height: 500 - 700 - 900 mm

Wall Thickness: 8 - 10 - 16 mm

Moving Part: Powder Coating / 304-316 Stainless

Inner Sleeve: Hot-dip Galvanized

Movement Mechanism: Air compressor

Power Supply Three-Phase: 3ph AC 220V (±10) 50/60Hz

Operating Speed: 4-6 sec.

Warranty Period: 2 years

Control Panel: Arma Board [EE51KAR]

Security Feature: Loop Sensor and Detection Systems

Operating Temperature -25 °C / +60 °C

Manual Lowered: Ball Valve

Warranty Perriod: 2 year

Extented Warranty: Available

Spare Part Supply Warranty: 10 year

Pneumatic Rising Bollards is compatible with Arma Kart for all Access Control Systems.
