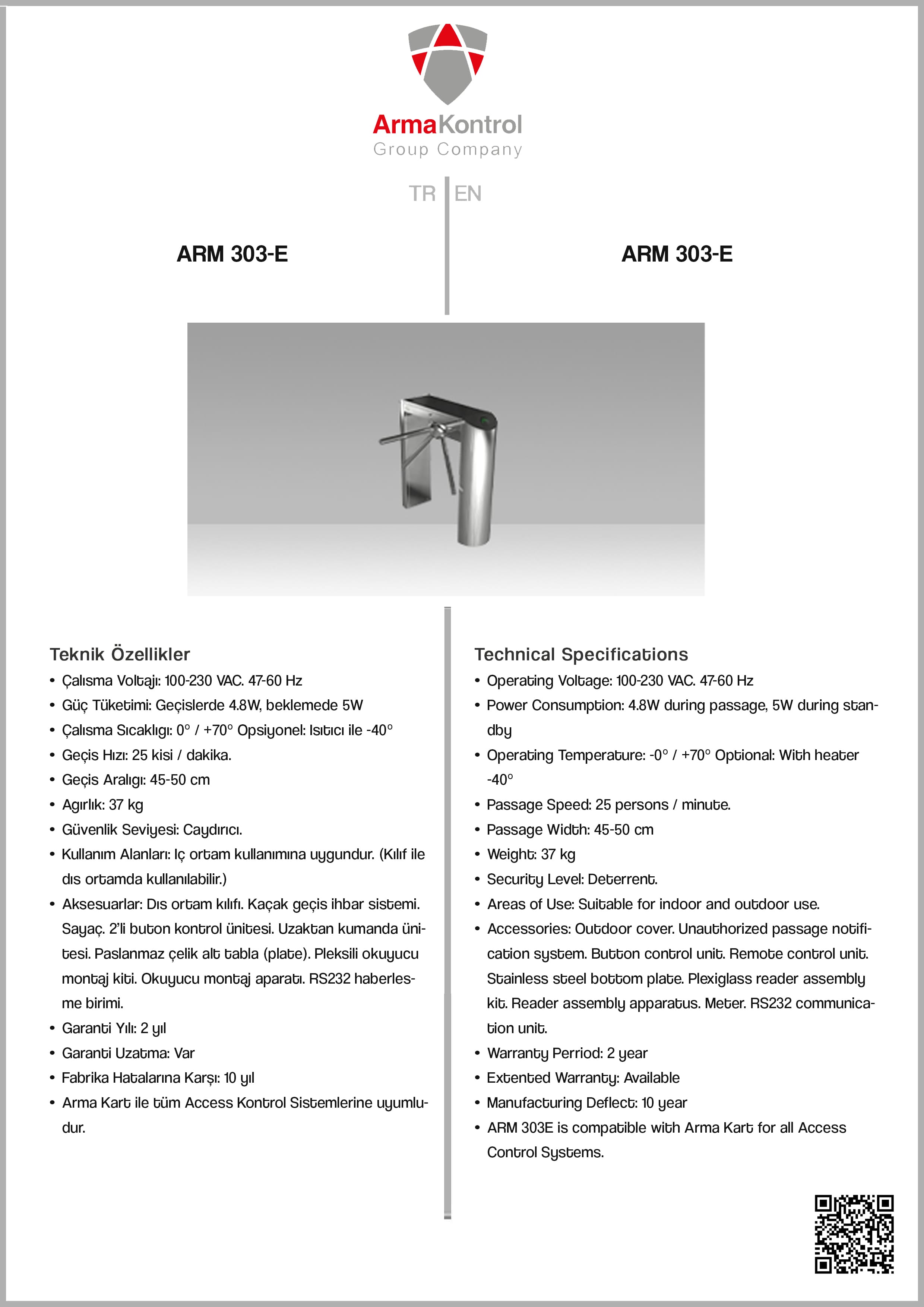

ARM 303-E

ARM 303-E

Operation: Adjustable manual passage to either direction.
Frame: Cylindrical, two-legged, AISI 304 quality stainless steel. Optional: AISI 316 quality.
Core and Arms: CNC-machined, aluminum cast core and polished. Ø 40x2.5 mm aluminum arms
Optional: Stainless steel arms.
Functions: Passage information (NC: Normally close or NO: Normally open).
Passage time. Memory mode. Audio warning. Adjustable passage direction.
Mechanism: AISI 304 quality stainless steel. Fail-Safe (arms drop during power failure)
Emergency Mode: The arms fall down with the signal received from fire detection system.
Optional: Drop arm.
Indicator: Direction LEDS for both directions. Optional: Upper lid.

Operating Voltage: 100-230 VAC. 47-60 Hz

Power Consumption: 4.8W during passage, 5W during standby

Operating Temperature: -0° / +70° Optional: With heater -40°

Passage Speed: 25 persons / minute.

Passage Width: 45-50 cm

Weight: 37 kg

Security Level: Deterrent.

Areas of Use: Suitable for indoor and outdoor use.

Accessories: Outdoor cover. Unauthorized passage notification system. Button control unit. Remote control unit. Stainless steel bottom plate. Plexiglass reader assembly kit. Reader assembly apparatus. Meter. RS232 communication unit.

Warranty Perriod: 2 year

Extented Warranty: Available

Manufacturing Deflect: 10 year

ARM 303E is compatible with Arma Kart for all Access Control Systems.
