Counter-Terror Rising Bollard B-ATB-7110
Arma Kontrol Counter Terror Rising Bollard Barriers are impact-resistant, high security systems specially designed to prevent the passage of unauthorized vehicles.

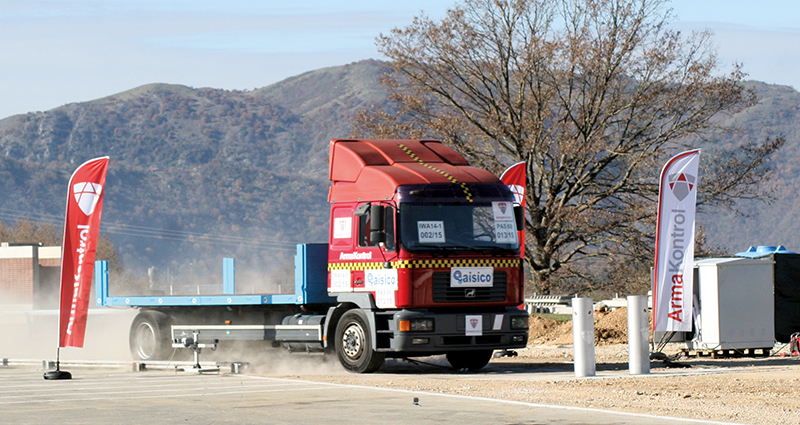

Arma Counter Terror Hydraulic Rising Bollard has stopped 7.5 ton of vehicle which has 80 km speed in crash test which is executed on AISICO Test Site in Italy. Becouse of success on crash test, our hydraulic bollard has earned ISO 22343-1 / IWA 14-1:2013 / PAS68:2013 crash test certification.
Our crash test products have proven their quality as barrier systems with CE, ISO, TÜV certificates.
Crash Test Report:
ISO 22343-1 V/7500[N3]/80/90:0.9/19
IWA 14-1:2013 V/7200[N3C]/80/90:0.9
PAS 68:2013 V/7500[N3]/80/90:0.9/19

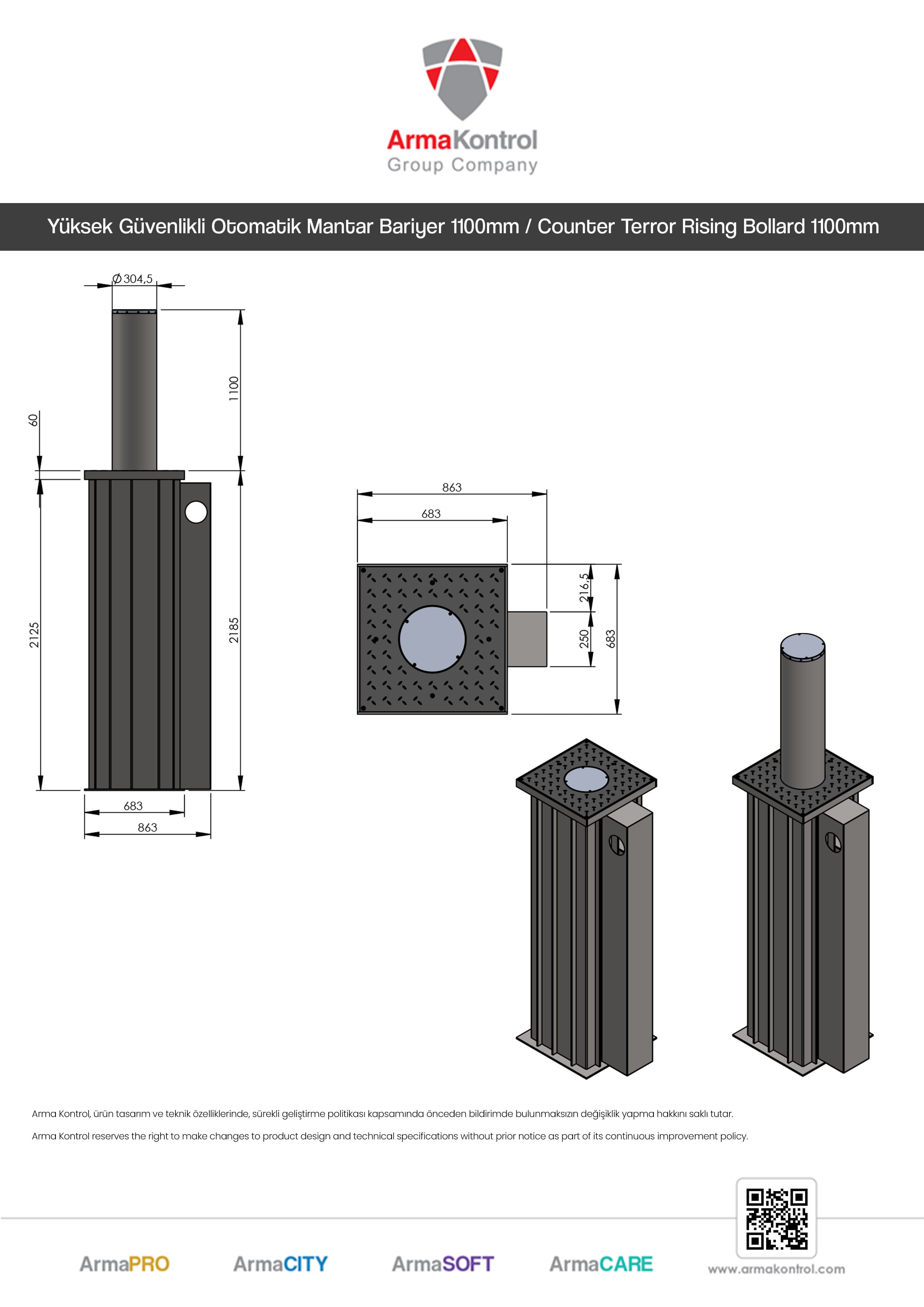

Bollard Diameter: Ø 300 mm
Bollard Height : 1100 mm
Bollards Wall Thickness: 30 mm
Moving Part: Powder Coating / 304-316 Stainless
Inner Sleeve: Hot-dip Galvanized
Drive Movement: Hydraulic Driven
Power Supply Three-Phase: 3ph AC 380V (±10) 50/60 Hz.
Operating Speed: 8-10 sec
Impact Energy: 1902.66 Kj
Control Panel: Arma Board [EE51KAR]
Security Feature: Loop Sensor and Detection Systems
Operating Temperature -25 °C / +60 °C
Warranty Perriod: 3 year
Extented Warranty: Available
Spare Part Supply Warranty: 10 year
Counter-Terror Rising Bollard is compatible with Arma Kart for all Access Control Systems.
