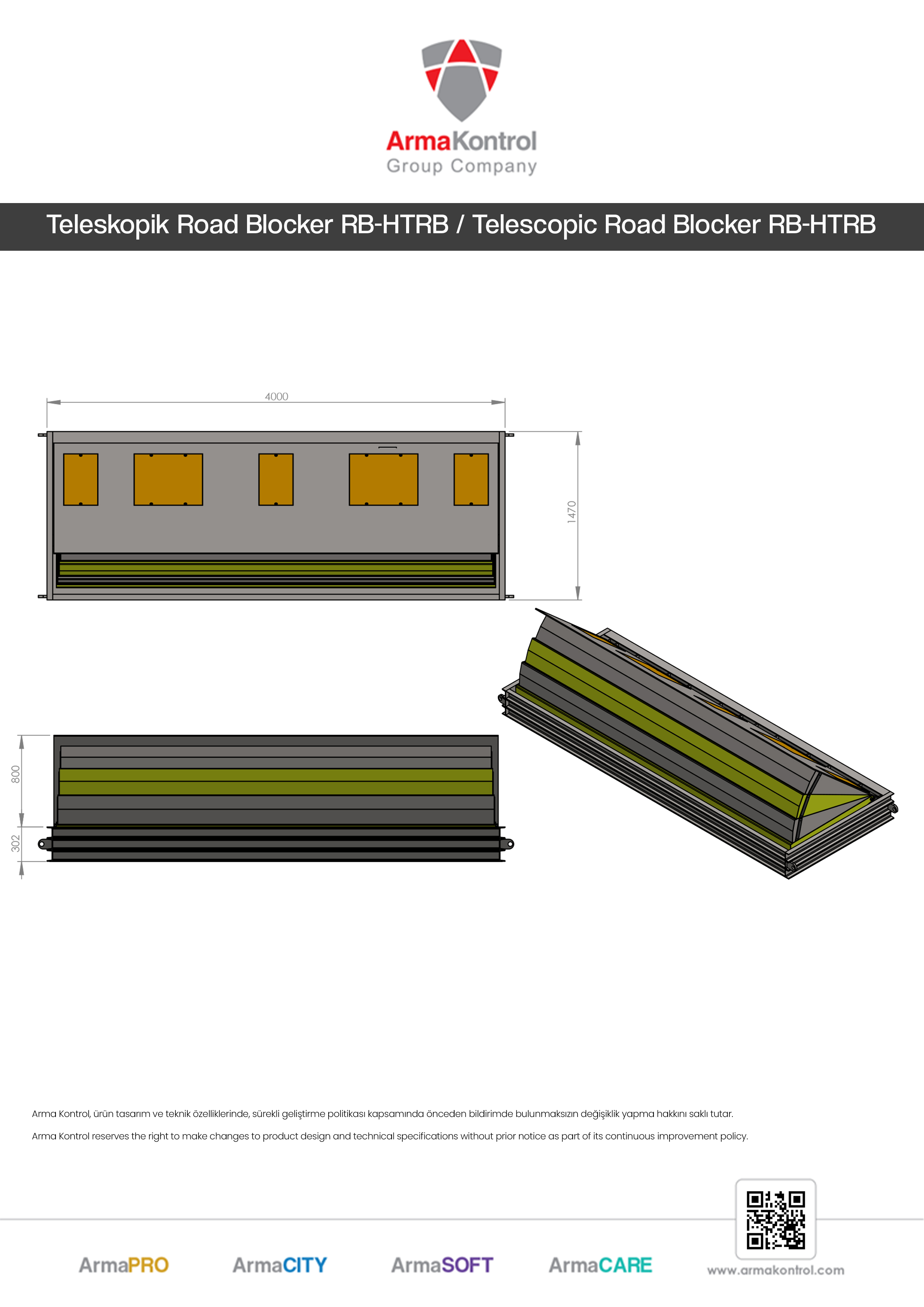

Telescopic Road Blocker       RB-HTRB

Telescopic Road Blocker       RB-HTRB

Arma Hydraulic Telescopic Road Blocker has designed for the places where has infrastucture constraints such as limited foundation depths to provide access control system.

Telescopic Road Blockers has sterngthened to prevent unauthorised vehicle entries just like Road Blockers

It could be manufactured with variable height, length and width according to desired security level and necessities of perimeter.

System couldn’t be distrupted by unauthorised person with control card with password algorithm for the places where security necesities are very high. Hydraulic Bollard System is compatible with any access control systems such as RFID, Card Readers, Tablets, PC, Mobile App and Scada with it’s special Arma WOC Software and all system could be controlled from one center.

Usage Conditions: It has resistance of impact of 4 tons of vehicles with 40 km speed. (Certified with Crash Test Simulation)

Please click for Internationally Crash Tested Road Blockers

Height: 500 – 600 - 700 – 800 - 900 mm

Width: 2000 - 3000 - 4000 mm

Excavation Depth: 250 - 300 mm

Wall Thickness: 10 mm

Moving Part Sheet Metal Type: ST 44

Movement Mechanism: Hydraulic

Power Supply: 3ph AC 380V (±10) 50/60 Hz.

Operating Temperature: -25 °C / +60 °C

Operating Speed: 4 - 6 sec

Control Panel: Arma Board [EE51KAR]

Manual Lowered: Ball Valve

Security Feature: Loop Sensor and Detection Systems

Warranty Perriod: 3 year

Extented Warranty: Available

Spare Part Supply Warranty: 10 year

Telescopic Road Blocker is compatible with Arma Kart for all Access Control Systems.
