Telescopic Rising Bollard     B-TMB

Telescopic Rising Bollard     B-TMB

Arma Telescopic Hydraulic Rising Bollards has designed for the places where has infrastucture constraints such as limited foundation depths to provide access control system.

Telescopic Hydraulic Rising Bollards are strengthened to prevent unauthorised vehicle passage on secured perimeters just like Hydraulic Rising Bollards. This type of bollard could be manufactured with variable height & diameter regarding to necesities of secured areas. System couldn’t be distrupted by unauthorised person with control card with password algorithm for the places where security necesities are very high.

Hydraulic Bollard System is compatible with any access control systems such as RFID, Card Readers, Tablets, PC, Mobile App and SCADA with it’s special Arma WOC Software and all system could be controlled from one center.

Usage Conditions: It has resistance of impact of 4 tons of vehicles with 40 km speed. (Certified with Crash Test Simulation)

Please click for Internationally Crash Tested Hydraulic Bollards.

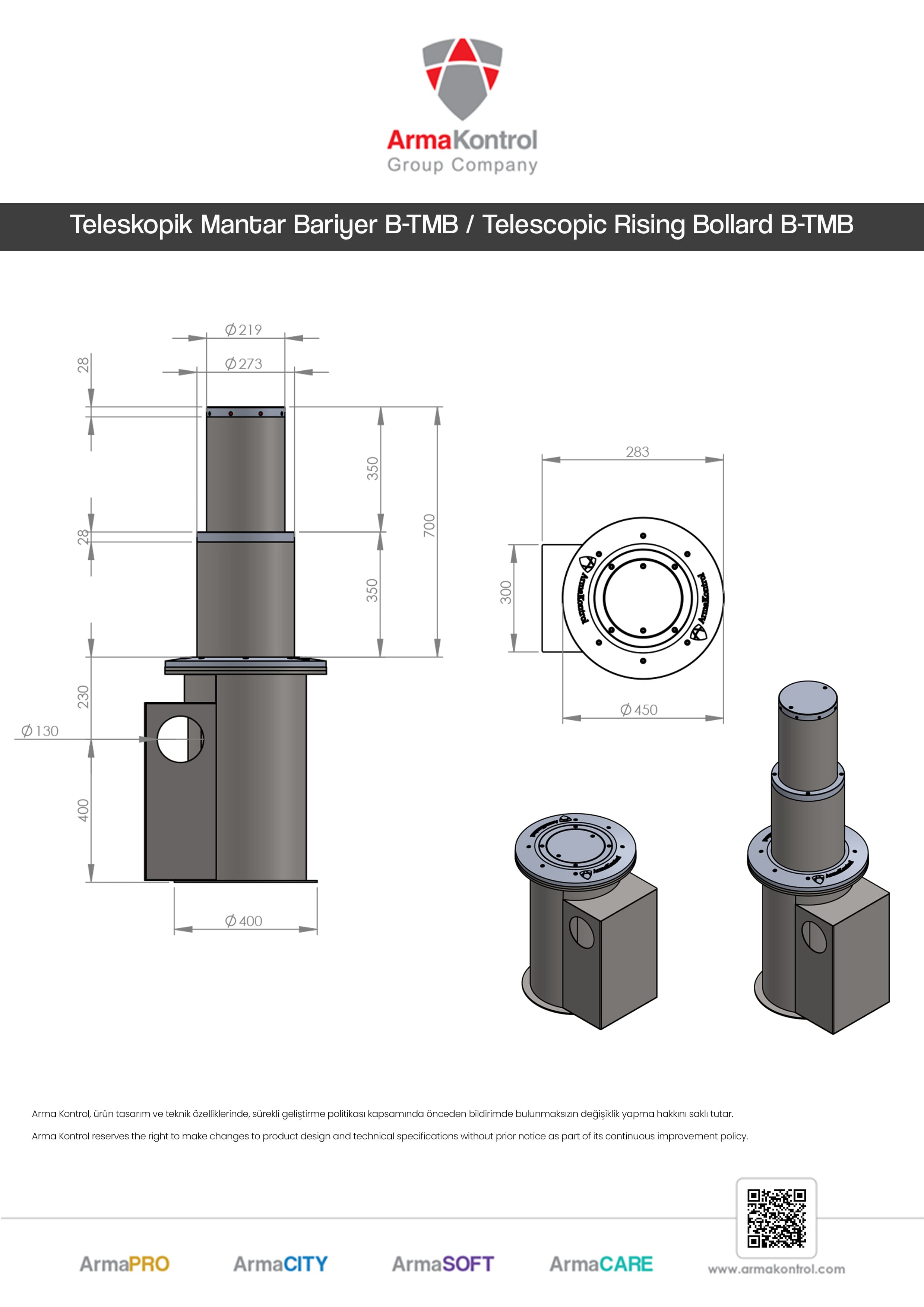

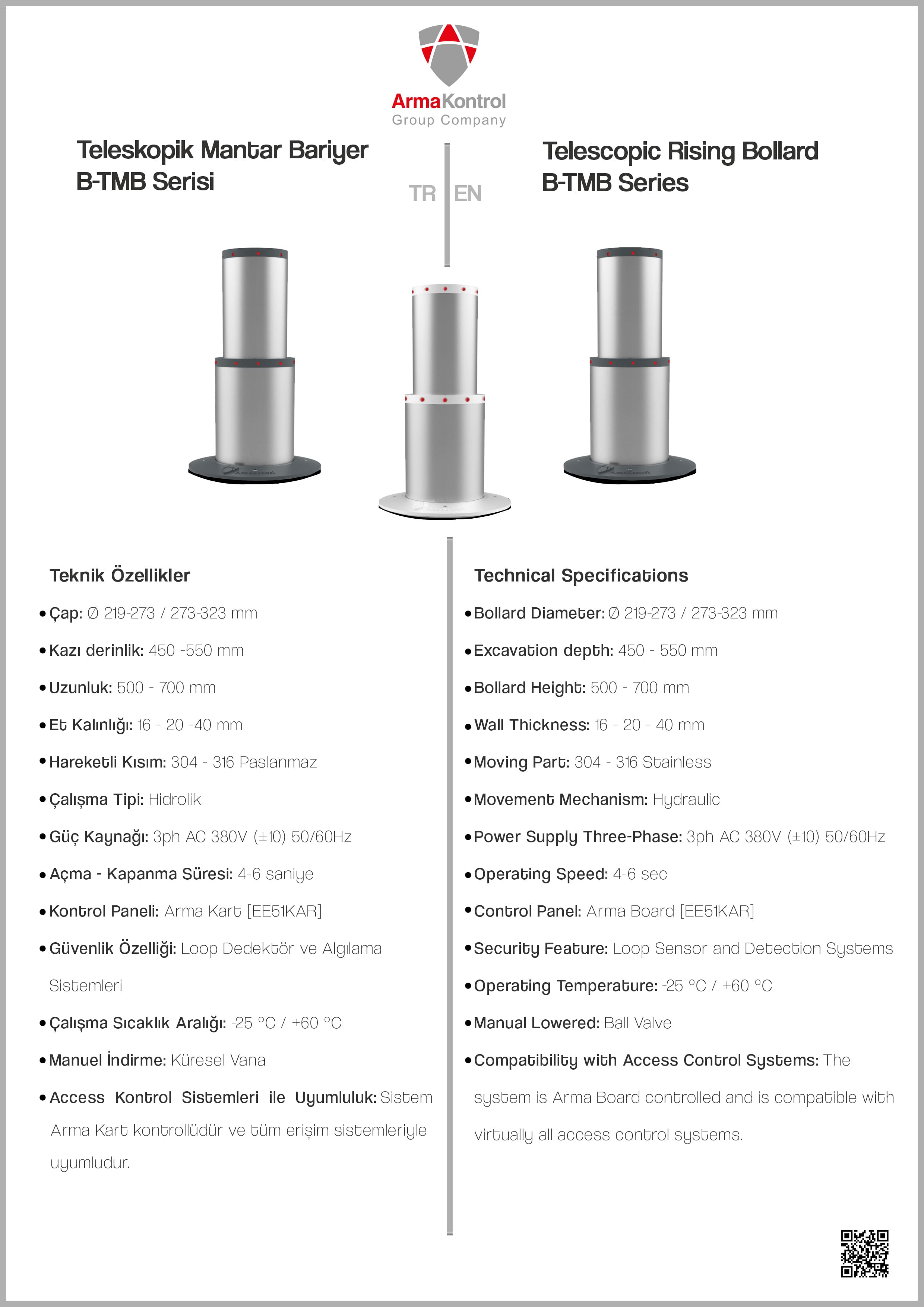

Bollard Diameter: Ø 219-273 / 273-323 mm

Excavation depth: 450 - 550 mm

Bollard Height: 500 - 700 mm

Wall Thickness: 16 - 20 - 40 mm

Moving Part: 304 - 316 Stainless

Movement Mechanism: Hydraulic

Power Supply Three-Phase: 3ph AC 380V (±10) 50/60Hz

Operating Speed: 4-6 sec

Control Panel: Arma Board [EE51KAR]

Security Feature: Loop Sensor and Detection Systems

Operating Temperature: -25 °C / +60 °C

Manual Lowered: Ball Valve

Warranty Perriod: 3 year

Extented Warranty: Available

Spare Part Supply Warranty: 10 year

Telescopic Rising Bollard is compatible with Arma Kart for all Access Control Systems.
