Counter Terror Telescopic Bollard 900 mm

Counter Terror Telescopic Bollard 900 mm

ISO 22343-1 Certified Crash-Tested Hydraulic Rising Bollard The Arma Kontrol High-Security Telescopic Rising Bollard (900 mm) is an ISO 22343-1:2023 certified hydraulic rising bollard system developed to stop vehicle-borne attacks at facilities requiring the highest level of perimeter security. Developed in Türkiye and successfully validated through internationally recognized crash tests, this high-security vehicle barrier is capable of stopping a 7,200 kg vehicle traveling at 64 km/h, providing superior vehicle access control and perimeter protection for critical infrastructure.

Türkiye's First Telescopic Rising Bollard to Successfully Pass a 64 km/h Crash Test

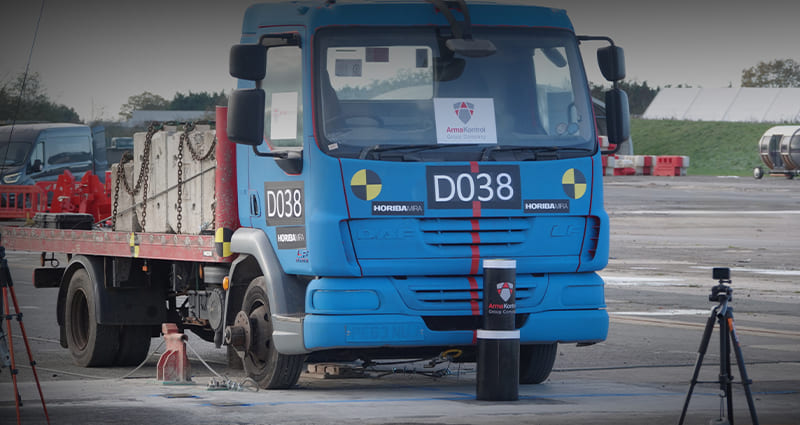

The high-security telescopic rising bollard developed by Arma Kontrol successfully passed an independent vehicle impact test under the following conditions:

  • Vehicle Weight: 7.2 tonnes (7,200 kg)
  • Impact Speed: 64 km/h
  • Impact Energy: 1,137.8 kJ

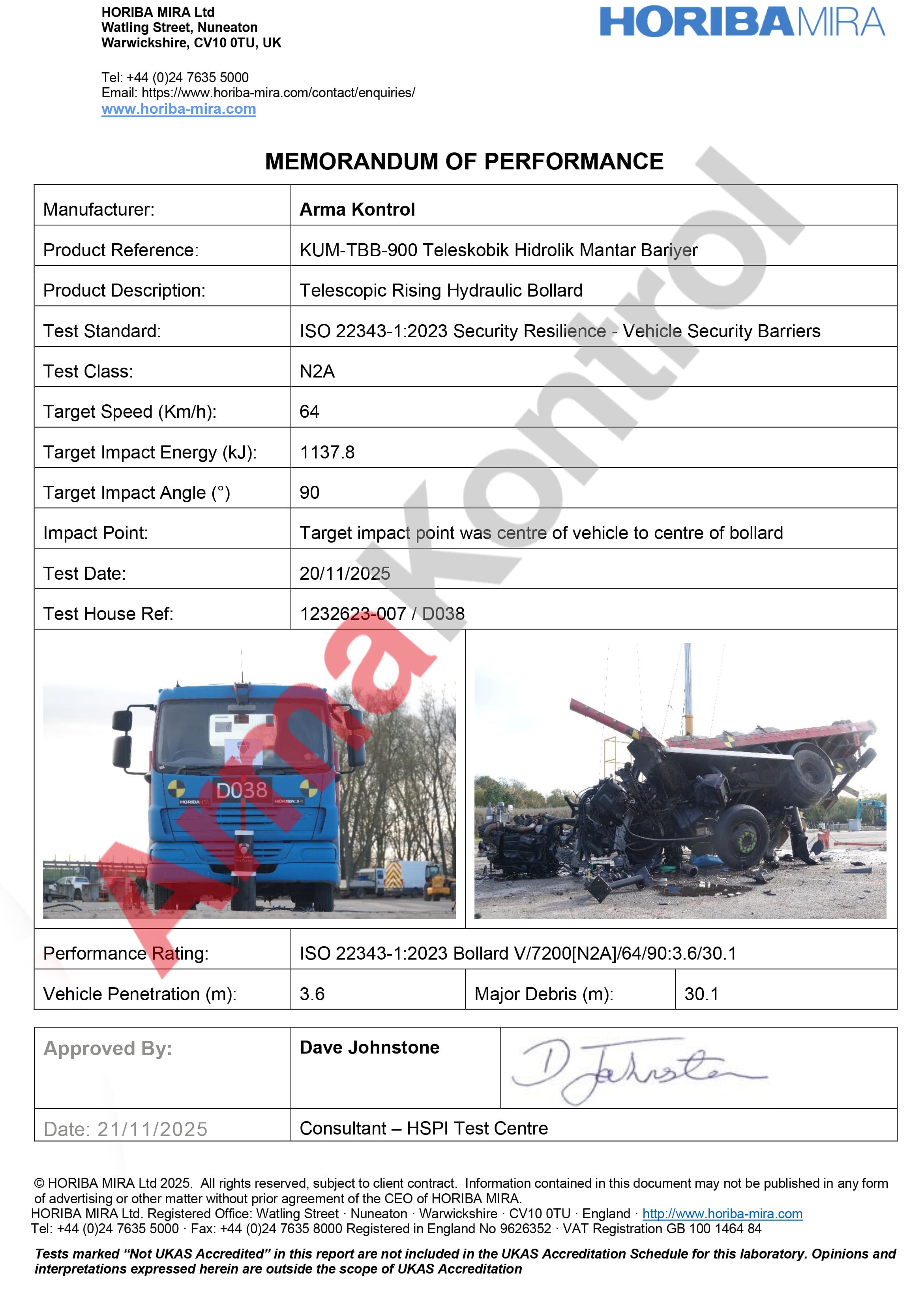

Following the successful test, the product achieved the following certification:

ISO 22343-1:2023 Bollard V/7200[N2A]/64/90:3.6

This certification demonstrates that the bollard meets the high-security performance requirements demanded by critical infrastructure, government facilities, military sites, airports, embassies, data centers, and other high-risk locations.

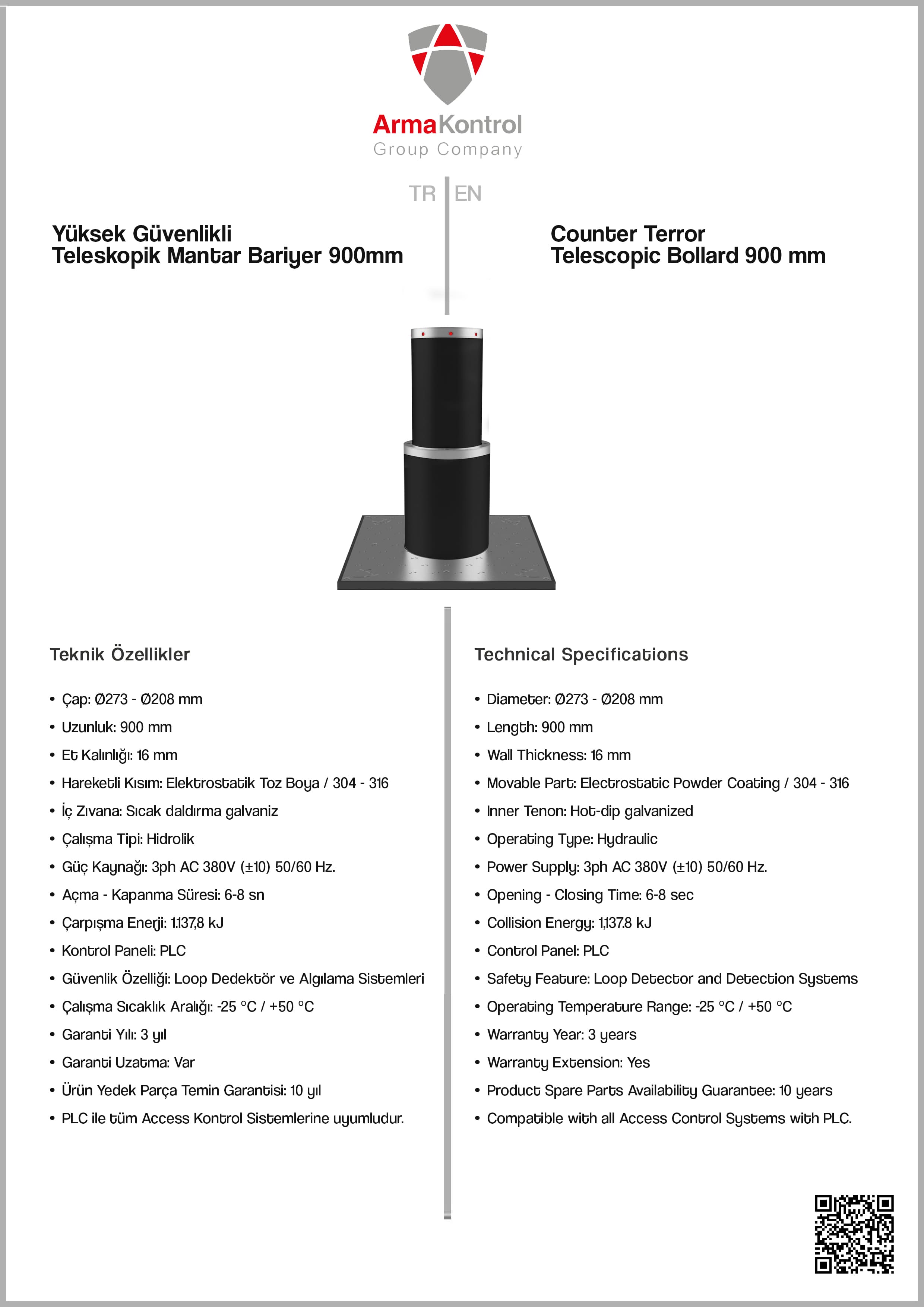

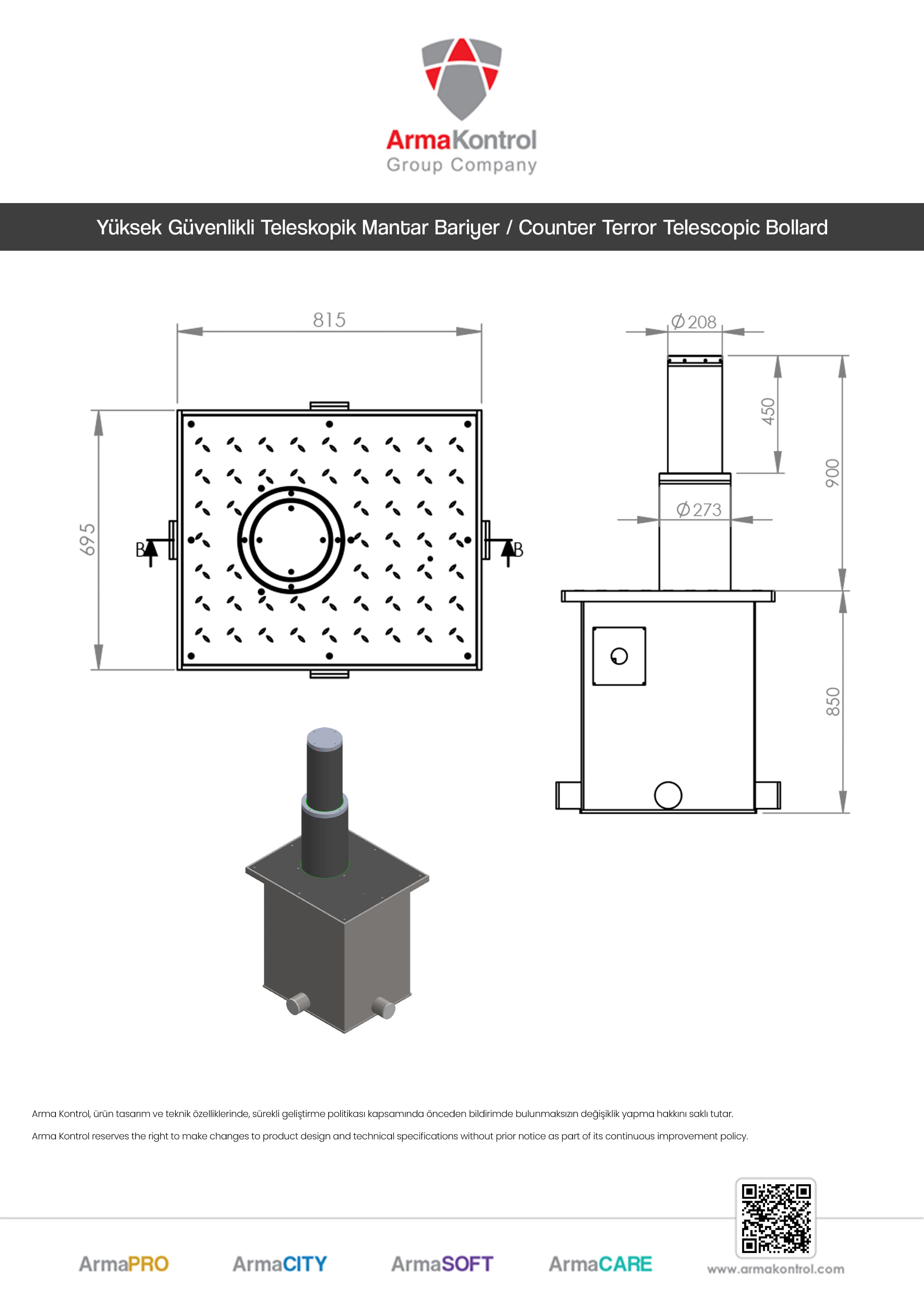

Diameter: Ø273 - Ø208 mm

Length: 900 mm

Wall Thickness: 16 mm

Movable Part: Electrostatic Powder Coating / 304 - 316

Inner Tenon: Hot-dip galvanized

Operating Type: Hydraulic

Power Supply: 3ph AC 380V (±10) 50/60 Hz.

Opening - Closing Time: 6-8 sec

Collision Energy: 1,137.8 kJ

Control Panel: PLC

Safety Feature: Loop Detector and Detection Systems

Operating Temperature Range: -25 °C / +50 °C

Warranty Year: 3 years

Warranty Extension: Yes

Product Spare Parts Availability Guarantee: 10 years

Compatible with all Access Control Systems with PLC.
