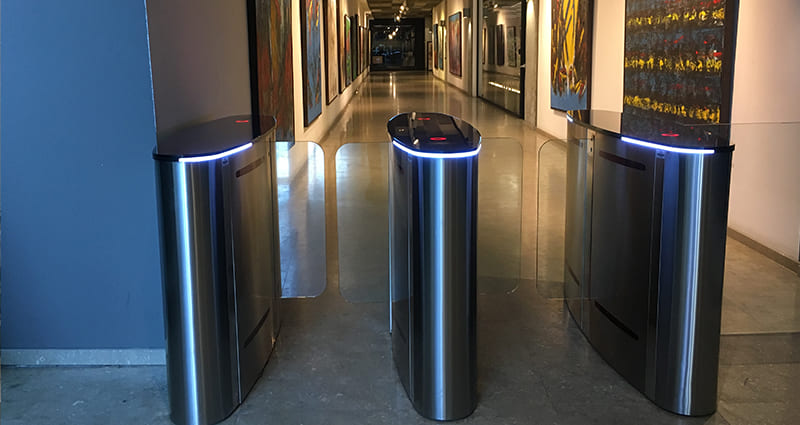

ARM 201

ARM 201

Operation: Controlled or control-free entrance/exit in both directions.
Chassis: AISI 304 quality stainless steel. Optional: Black stainless steel.
Wing: Angular winged 10 mm tempered glass. Optional: Smoke colored glass.
Upper Table: 1O mm black tempered glass. Optional: Wood.
Functions: Operates bidirectionally and allows the passage of a single person only with its microprocessor control. Electronic passage memory feature saves in memory card swipes that occur before a passage is completed and allows them to pass without closing the wings. Optional: 2 x RS232 and 1 x RS485 communication ports.
Mechanism: With its adjustable mechanical torque control, the unit does not cause injury in the event of any jamming.
Sensors: 8 reciprocal sensors in every corridor.
Emergency Mode: Turnstile switches to emergency mode upon the receipt of a signal from fire detection system and wings open. Optional: In case of power shortage, wings automatically switch to open position with the power supplied from the accumulator (Fail Safe).
Safety Level Setting: With 2 security levels that can be defined as desired by the customer, turnstile is able to detect unauthorized passes and passes in the opposite direction and prevents or notifies, with audio or discreetly.
Indicator

Operating Voltage: 100-230 VAC. 47-60 Hz

Power Consumption: 84W during passage, 10W during standby (For two wings).

Operating Temperature: 0° / +70°

Passage Speed: 40 persons / minute.

Passage Width: 56 cm

Weight: 142 kg (Single wing)

Security Level: Deterrent.

Areas of Use: Suitable for indoor use.

Accessories: Logo engraving. Sticker. Remote control unit. Stainless steel reader apparatus. Meter. Button control unit. Stainless steel reader leg. Stainless steel bottom plate.

Warranty Perriod: 2 year

Extented Warranty: Available

Manufacturing Deflect: 10 year

ARM 201 is compatible with Arma Kart for all Access Control Systems.
