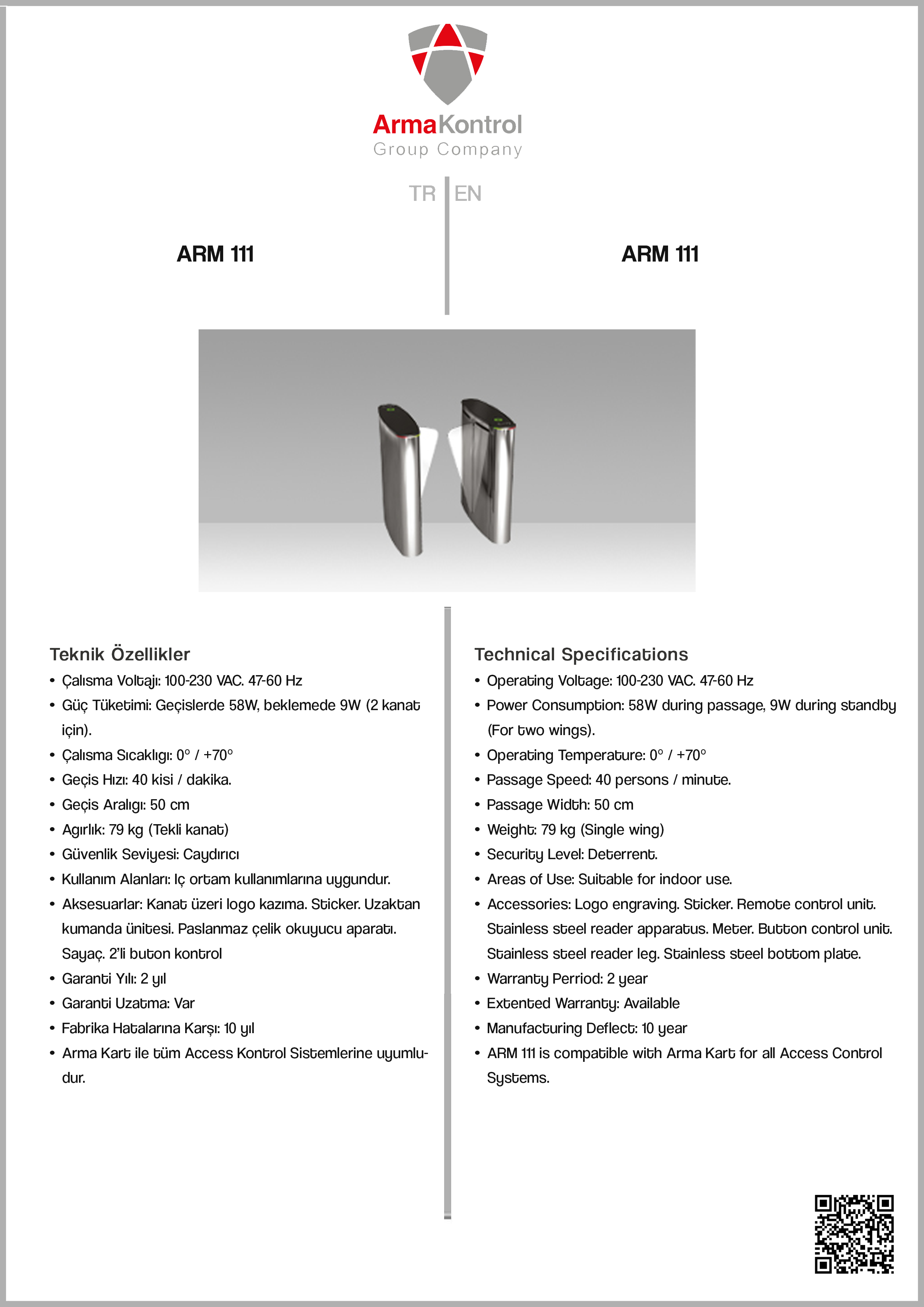

ARM 111

ARM 111

Operation: Controlled or control-free entrance/exit in both directions.
Chassis: AISI 304 quality stainless steel. Optional: Black stainless steel.
Wing: Angular winged, 10 mm tempered glass. Optional: Smoke colored glass.
Upper Table: 1O mm black tempered glass. Optional: Wood.
Functions: Operates bidirectionally and allows the passage of a single person only with its microprocessor control. Electronic passage memory feature saves in memory card swipes that occur before a passage is completed and allows them to pass without closing the wings. Optional: 2 x RS232 and 1 x RS485 communication ports.
Mechanism: With its adjustable mechanical torque control, the unit does not cause injury in the event of any jamming.
Sensors: 6 reciprocal sensors in every corridor.
Emergency Mode: Turnstile switches to emergency mode upon the receipt of a signal from fire detection system and wings open. Optional: In case of power shortage, wings automatically switch to open position with the power supplied from the accumulator (Fail Safe).
Safety Level Setting: There are 2 security level adjustments that the customer can adjust. Unauthorized and reverse transitions are detected and voice / confidential notification is made.
Indicator: Led lighting around the top plate and transition leds. Led lighting on wings.

Operating Voltage: 100-230 VAC. 47-60 Hz

Power Consumption: 58W during passage, 9W during standby (For two wings).

Operating Temperature: 0° / +70°

Passage Speed: 40 persons / minute.

Passage Width: 50 cm

Weight: 79 kg (Single wing)

Security Level: Deterrent.

Areas of Use: Suitable for indoor use.

Accessories: Logo engraving. Sticker. Remote control unit. Stainless steel reader apparatus. Meter. Button control unit. Stainless steel reader leg. Stainless steel bottom plate.

Warranty Perriod: 2 year

Extented Warranty: Available

Manufacturing Deflect: 10 year

ARM 111 is compatible with Arma Kart for all Access Control Systems.
